OEMic Pipeline Ball Valves
Send Inquiry click
here
Back
to Homepage
Class 150,
24"~ 44"

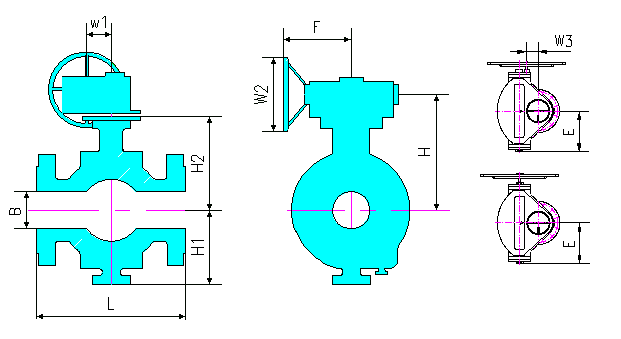

SIZE |
B |
L |
E |
H | H1 | H2 | W1 | W2 | W3 | F | Weight (Kg) | |
RF |
BW |
|||||||||||
24"FP |
23.25 | 42.00 | 45.00 | 13.39 | 38.78 | 25.98 | 27.99 | 5.91 | 31.50 | -- | 16.14 | 3540.9 |
28"FP |
27.00 | 49.00 | 53.00 | 15.53 | 43.43 | 29.72 | 32.28 | 7.09 | 31.50 | 3.27 | 25.60 | 4238.0 |
32"FP |
30.75 | 54.00 | 60.00 | 18.70 | 39.57 | 36.14 | 37.80 | 8.66 | 31.50 | 4.82 | 28.94 | 5719.0 |
36"FP |
34.50 | 60.00 | 68.00 | 18.70 | 47.24 | 39.76 | 41.54 | 8.66 | 31.50 | 4.82 | 28.94 | 8128.0 |
40"FP |
38.50 | -- | -- | -- | -- | 44.02 | 46.54 | -- | -- | -- | -- | 9896.0 |
44"FP |
42.00 | -- | -- | -- | -- | 47.32 | 49.88 | -- | -- | -- | -- | 10020.5 |
Class 300,
24"~ 44"
| SIZE | B |
L |
H |
H1 |
H2 |
W1 |
W2 |
W3 |
E |
F |
Weight (Kg) |
|
RF |
BW |
|||||||||||
24"FP |
23.25 | 45.00 | 45.00 | 38.78 | 25.98 | 27.99 | 5.91 | 31.50 | -- | 13.39 | 16.14 | 4028.3 |
28"FP |
27.00 | 53.00 | 53.00 | 43.43 | 29.72 | 32.28 | 7.09 | 31.50 | 3.27 | 15.35 | 25.60 | 5049.0 |
32"FP |
30.75 | 60.00 | 60.00 | 39.57 | 36.14 | 37.80 | 8.66 | 31.50 | 4.82 | 18.70 | 28.94 | 5936.0 |
36"FP |
34.50 | 68.00 | 68.00 | 47.24 | 39.76 | 41.54 | 8.66 | 31.50 | 4.82 | 18.70 | 28.94 | 8988.0 |
40"FP |
38.50 | -- | -- | -- | 44.02 | 46.54 | -- | -- | -- | -- | -- | 10698.0 |
44"FP |
42.00 | -- | -- | -- | 47.32 | 49.88 | -- | -- | -- | -- | -- | 10810.9 |
Class 600,
24"~ 44"
SIZE |
B |
L |
H |
H1 |
H2 |
W1 |
W2 | W3 | F | E | Weight (Kg) | ||
RF |
BW |
RTJ | |||||||||||
24"FP |
23.25 | 55.00 | 55.00 | 55.375 | 37.24 | 29.92 | 31.54 | 7.09 | 31.50 | 3.27 | 25.60 | 15.35 | 4174.0 |
28"FP |
27.00 | 61.00 | 61.00 | 61.50 | 41.14 | 33.86 | 35.43 | 8.66 | 31.50 | 4.82 | 28.94 | 18.70 | 7843.0 |
32"FP |
30.75 | 82.00 | 82.00 | 82.625 | -- | 39.88 | 42.40 | -- | -- | -- | -- | -- | 9553.0 |
Note:
- From 24" to 36" shall be equipped with Yoke of seal type and worm, worm-wheel. We also can provide the following actuations upon your request: Pneumatic, Hydraulic, Hydro-pneumatic, Electric.
- The Face to Face of above 40", 44" shall be per our standars or specified by customer.
| Part Names | Construction | Materials |
| Body | Bolted | A216 -WCB or A351-CF8/CF8M or A352-LCC/LCB |
| Ball | Hollow | A216-WCB HCr or ENP or A351-CF8/CF8M |
| Stem | -- | A182 F6a/F304/F316 |
| Body Seat Ring | Soft | PTFE |
| Studs/Nuts | -- | A193 B7/A194 2H or A320 L7M/A194 7M |
- Notes:
