OEMic Valve

Catalogue No. 053110499

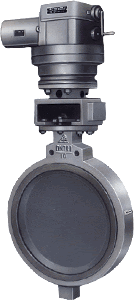

Rubber Lined Butterfly Valves 0531104ddcc.gif (6547 bytes)
DN(mm):50 - 1200 PN(MPa): 1.1 Temp. -40 to 150 (200) degree C
Ps(MPa) 1.5 Seal Test (MPa) 1.1
Service: Water, Steam, Sea Water, Oil, Acid etc.                              User Reference List
Body C.I., CS, SS,  CrNiMoTi Lined Seat BUNA, EPDM, Neoprene, PTFE
Disc C.I., CS, SS,   CrNiMoTi
Stem C.S. 2Cr13, CrNiMoTi, S.S. Packing TEF, Graphite

X
D971 -10C(P/R/Z) Dimension
J
DN mm L D1 D Z-d H Ho A B Do Wt / Kgs
50 43 125 165 4-18 63 438 125 125 80 36
65 46 145 185 4-18 70 453 125 125 80 37
80 46 160 200 8-18 83 478 125 125 80 38
100 52 180 220 8-18 105 519 125 125 80 39
125 56 210 250 8-18 115 713 325 245 150 46
150 56 240 285 8-22 137 749 325 245 150 69
200 60 295 340 8-22 164 843 325 245 150 89
250 68 350 395 12-22 206 947 363 313 200 100
300 78 400 445 12-22 230 1013 363 313 200 120
350 78 460 505 16-22 248 1046 363 313 250 170
400 102 515 565 16-26 289 1135 363 313 250 180
450 114 565 615 20-26 320 1328 465 439 300 190
500 127 620 670 20-26 343 1226 546 431 360 230
600 154 725 780 20-30 413 1394 546 556 360 350
700 165 840 895 24-30 478 1534 546 556 360 500
800 190 950 1015 24-33 525 1591 546 556 360 530
900 203 1050 1115 28-33 585 1748 617 706 360 880
1000 216 1160 1230 28-36 640 1805 632 706 360 1050
1200 254 1380 1455 32-39 755 2035 632 706 360 1200
1400                   2300
1600                   2700
1800                   3500
2000                   4100





2 X
D 71 -10C(P/R/Z) Dimension
3 J
DN (mm) L D1 D Z-d H Ho A B Do Wt / Kgs
50 43 125 165 4-18 63 306 193 125 150 8
65 46 145 185 4-18 70 321 193 125 150 9
80 46 160 200 8-18 83 346 193 125 150 10
100 52 180 220 8-18 105 387 193 125 150 11
125 56 210 250 8-18 115 411 193 125 150 13
150 56 240 285 8-22 137 447 193 125 150 14
200 60 295 340 8-22 164 572 283 165 220 30
250 68 350 395 12-22 206 646 283 165 220 40
300 78 400 445 12-22 230 738 334 175 280 78
350 78 460 505 16-22 248 761 334 175 280 81
400 102 515 565 16-26 289 877 425 210 320 140
450 114 565 615 20-26 320 938 425 210 320 160
500 127 620 670 20-26 343 993 425 210 320 190
600 154 725 780 20-30 413 1131 425 210 320 315
700 165 840 895 24-30 478 1476 620 320 400 480
800 190 950 1015 24-33 525 1533 620 320 400 516
900 203 1050 1115 28-33 585 1655 620 320 400 780
1000 216 1160 1230 28-36 640 1765 620 400 400 950
1200 254 1380 1455 32-39 755 1995 620 400 400 1150




X
D71 -10C(P/R/Z) Dimension
J
DN(mm) L D1 D Z-d H Ho A B Wt / Kgs
25 43 85   4-14         2.5
32 43 100   4-18         2.8
40 43 110   4-18   220     3.1
50 43 125 165 4-18 63 235 270 65 3.5
65 46 145 185 4-18 70 250 270 65 4.4
80 46 160 200 8-18 83 275 270 65 5.5
100 52 180 220 8-18 105 316 270 65 6.5
125 56 210 250 8-18 115 340 310 65 9
150 56 240 285 8-22 137 376 310 65 12
200 60 295 340 8-22 164 472 365 90 22
