Part No. |
PART
NAME |
QUANTITY |
1 |
VALVE BODY |
1 No. |
2 |
DISC STEM |
1 No. |
3 |
LINER |
1 No. |
4 |
LINER BACK UP |
2 Nos. |
5 |
BUSH |
3 Nos. |
6 |
PUSHER |
2 Nos. |
7 |
BELLVILLE WASHER |
8 Nos. |
8 |
SOCKET SCREW |
1 No. |
9 |
GLAND |
1 No. |
10 |
PIVOT PIN |
1 No. |
11 |
GLAND PACKING |
2 Nos. |
|

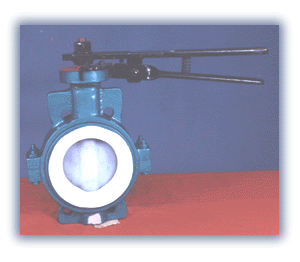

SALIENT FEATURES 1.
The unique Lined Butterfly Valve designed exclusively for highly corrosive application.
2. Sizes from 2" to 16"
3. Body: Upper and lower valve are assembled together With 2 bolts with seat ring
incorporated
inside. The inner surface and other wetted part are TEFLON (PFA/FEP) Lined.
4. Disc: Strength Lined with TEFLON (PFA/FEP) for smooth and corrosive resistant surface
seat ring. Lined TEFLON (PFA/FEP) gives no odour objectionable to food corrosion,
resistant and smooth internal surface leaves no packet for bacteria. Special seal designed
around the stem functions primary seal effect.
5. Back up ring: Secondly seal around the stem assures long losting sealing effect.
6. Stem Guide: Low friction bushing of TEFLON(PTFE) needs no lubriction.
7. Upper and Lower Stems are designed and integrated with disc to avoid high friction. |
