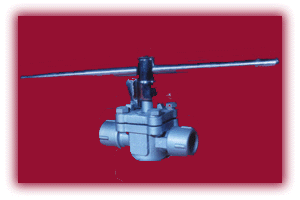

Screwed  End  TEFLON Sleeved Plug Valves

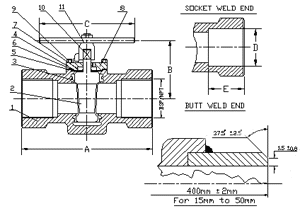

P.T.NO

PART NAME

MATERIAL

1

Valve Body CF8M, CF3M, CF8, WCB.

2

Plug CF8M, CF3M, CF8, WCB.

3

Sleeve PTFE

4

Washers PTFE

5

Diaphragm & Wedge Ring PTFE Glass Filled

6

Metal Diaphragm CF 8M / CF8

7

Thrust Collar CF8M

8

Cover Plate CF8M, CF3M, CF8, WCB

9

Boltings & Spring Washers ASTM A193, 194 Gr.B7 / CF8M

10

Handle Bush M.S.

11

Handle Rod M.S.

TEST PRESSURE, bar

MATERIAL

WCB / CF8 / CF8M

CLASS

150

300

HYD.

SHELL

30

77

SEAT

22

56

CLASS

150

SIZE

15

20

25

40

50

A

108

117.5

127

165

178

B

80

80

89

100

125

C

165

165

225

305

455

D

21.7

27.05

33.8

48.65

61.1

21.95

27.3

34.05

48.9

61.35

E

10

13

13

13

16

BSP/NPT

1/2"

3/4"

1"

1 1/2"

2"

Weight Kg

1.1

1.1

3.5

6.5

9.5

300

15

20

25

40

50

140

152.5

165

190.5

216

80

80

89

100

125

165

165

225

305

455

21.7

27.05

33.8

48.65

61.1

21.95

27.3

34.05

48.9

61.35

10

13

13

13

16

1/2"

3/4"

1"

1 1/2"

2"

1.5

1.5

4

7.5

10.5



CODE

DI

WCB

LCB

CA15

CF8

CF8M

CN7M

CD4MCu

410

304

316

CI

MATRL

A395

A216

A352

A217

A351

A351

A351

A351

A276

A276

A276

IS-210

SPECN

DI

WCB

LCB

CA15

CF8

CF8M

CN7M

CD4MCu

410

304

316

FG200

NOTES

1. Socket End ANSI B16.11.

2. Screwed Ends to BS21. NPT ANSI B2.1.

3. Butt Welded ANSI B16.25.

4. Only dimension A is certified and other dimension are indicative.

5. Max working temp. 200°c.

6. STAITC ELIMINATOR will be provided wherever necessary.

7. Butt Weld valves will be supplied with extention seamless tube.
