Pneumatic Actuators

        Fax: 1(630)5780598        Email:valvedepot@valvedepot.com



BACK

Model 25 DR Actuator

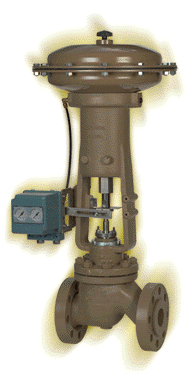

Models 25D and 25R are single acting, spring opposed, field-reversible, 25 square inch linear actuators used with Cashco's sliding stem (linear), globe style control valves. The "R" denotes "reverse" acting arrangement; the "D" denotes "direct" acting arrangement. Shown here with the Model 987 control valve.

Specifications
Specifications
Bench Settings and
Air Supply Pressure psig
3-15 / 20
8-15 / 20
6-30 / 35
16-30 / 35
Nominal Stroke .5"
Options Hand Wheel, and Closing Cap
Model 25 DR Actuator



Model 30 DR

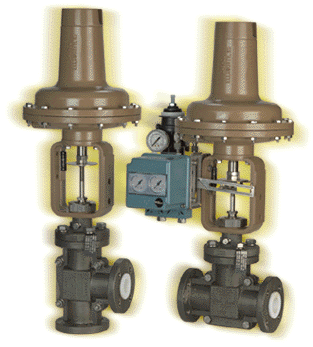

Models 30D and 30R are single acting, spring opposed, field-reversible, 30 square inch linear actuators used with Cashco's sliding stem (linear), globe style control valves. The "R" denotes "reverse" acting arrangement; the "D" denotes "direct" acting arrangement. Shown with the Model 520 and Model 521.

Specifications
Specifications
Bench Settings and Air Supply Pressure psig 1-15 / 20
4-15 / 20
7-28 / 35
Nominal Stroke .438", .625", or .875"
Options Hand Wheel, and Closing Cap
Model 30 DR



Model 48, 148, and 148X

The #48, #148, and #148X actuators are compact spring / diaphragm actuators designed for rotary control valves . They are assemble on the valve for either fail close or fail open action. The actuators feature a rolling diaphragm, multi-springs, enclosed linkage, field reversible failure action and a top mounted handwheel on the Ranger QCT valves.

Specifications
Bench Settings and Air Supply Pressure psig 5-13 / 25
7.5-19.5 / 30
10-26 /40
14-30 / 45
Torque / #48 Actuator 17 - 20 ft. lb.
Torque / #148/#148x Actuator 30 - 35 ft. lb.
Options Hand Wheel, and Closing Cap
Model 48, 148, 148X Actuator



Model 55, 77, and 115 Actuators

Models 55D & R, 75D & R, and the 115D & R, are single acting, spring opposed, linear actuators used with Cashco's sliding stem (linear) globe style control valves. Shown mounted to Cashco's 988 control valve.

Specifications
Bench Settings and Air Supply Pressure psig 3-13 / 20
5-15 / 20
10-30 / 35
6-26 / 35
6-27 / 35
6-28 / 35
6-29 / 35
6-30 / 35
7-30 / 35
8-30 / 35
8-30 / 35
Nominal Stroke 55DR - .75"
75D - .75"
75R - 1.125"
110DR - 1.125"
Options Hand Wheel, and Closing Cap
Model 55, 75, 115 Actuator
