  LOW TORQUE BALL VALVE

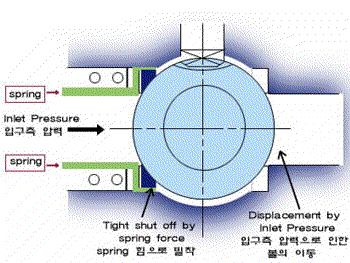

Low Torque Ball valve employes spring to eliminate friction between ball and  seat and reduce operation torque



There is no slurry accumulation which  occur in between ball and seat since internal spring prevent displacement of  ball during open/close position.
Low Torque Ball valve's unique design  provide superior seal and longer valve life.






  • Virtually zero friction between ball and seat by internal spring.
  • Minimize operational torque up to 1/3 of typical ball valves.
  • Cost and size reduction in selecting an actuator due to the low operational torque.
  • Easily operated with low air supply ( Min 2.5bar)
  • Guarantee the life time up to 2¡­3 times longer than the standard ball valves.
  • No slurry accumulated at close position.
