Pool & Spa Valve

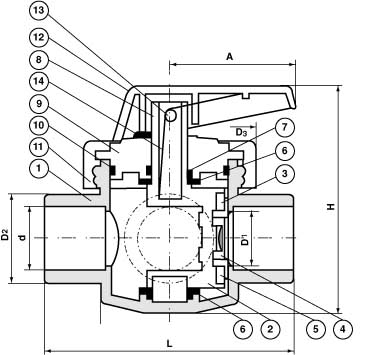

| Materials Of Construction | |||
| Item | Parts | Pcs | Materials |
| 1 | Body (2 Way or 3 Way) | 1 | PVC, ABS |
| 2 | Rotor Gate | 1 | PPG |
| 3 | Seal Retaining Plate | 1 | PPG |
| 4 | Retaining Plate Screw | 2 | SUS304 |
| 5 | Rotor Seal | 1 | EPDM |
| 6 | Bearing | 2 | ABS |
| 7 | Rotor O-Ring | 1 | EPDM |
| 8 | Rotor Shaft | 1 | PPG |
| 9 | Lid | 1 | PVC, ABS |
| 10 | Lid O-Ring | 1 | EPDM |
| 11 | Lid Lock Ring | 1 | ABS |
| 12 | Handle | 1 | ABS |
| 13 | Set Pin | 1 | BRASS |
| 14 | Spring | 1 | SUS410 |
POOL & SPA VALVE
1 1/2" - 2 WAY AND 3 WAY
CONNECTIONS
2" -2 WAY AND 3 WAY CONNECTIONS
DESIGN
SPECIFICATIONS
Thermoplastic Pool & Spa
Valves are manufactured for either two way or three way flow direction.
Body is one piece. The stem and sealing unit is of the rotary type. The
self locking handle makes it easier to use and adjust and the lock ring
closure allows quick and easy maintenance without special tools.
BODY
PVC, ASTM
D-1784 (white)
ROTOR GATE, SEAL RETAINING PLATE,
ROTOR SHAFT
PPG, Polypropylene Glass
reinforced
ROTOR SEAL, ROTOR O-RING, LID
O-RING
EPDM, Ethylene Propylene Diene
Monomer
HANDLE
ABS
End
connectors shall conform to the following standards:
SOCKET
ASTM -
D2467 (PVC, SCH-80)
THREADED
ASTM -
D2464 (PVC, SCH-80)
INDEPENDENT TESTING RESULTS:
2" - 3" Way Valve
10,000 Cycles
under 70 psi water pressure at ambient temperature. Leak
Testing: tests were performed after each 5000 cycles at
70 & 100 psi working pressure at ambient temperature. No
Leakage Occurred! Valve was not lubricated during the 10,000
cycles. Valve body was tested at 225 psig water pressure for 15 minutes.
Results - No leakage, no structural damage.
Not recommended for compressed air or gas service
| Size | Flow | D1 | D2 | D3 | L | H | A |
| 1 1/2" | 2-Way | 1.57 | 2.36 | 4.21 | 6.46 | 5.83 | 3.46 |
| 3-Way | 1.57 | 2.36 | 4.21 | 6.46 | 5.83 | 3.46 | |
| 2" | 2-Way | 2.38 | 2.89 | 4.92 | 7.44 | 6.30 | 3.46 |
| 3-Way | 2.38 | 2.89 | 4.92 | 7.44 | 6.30 | 3.46 |
