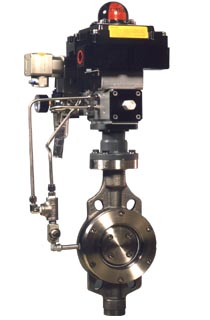

  nuflo Magic Butterfly VALVE - Non-fixed seat design butterfly valve

nuflo Magic Butterfly valve features a new conceptive non-fixed seat that is in contact with disc more securely and is released from disc prior to its rotation by  pneumatic control.

The unique design feature provides a  superior sealing effect since the seat  is tightened to the disc by spring return forces at closed condition.
And it also provides a long lasting seat life and low operational torque by eliminating an undesirable friction forces occurred at disc rotation.



¡¡




  • No friction between seat and disc
  • Long seat life cycle
  • Unique seat design provides superior sealing effect
  • Less operation torque
  • Without special installation instruction, nuflo Magic Butterfly valve can be easily installed due to no interference between seat and piping system.
