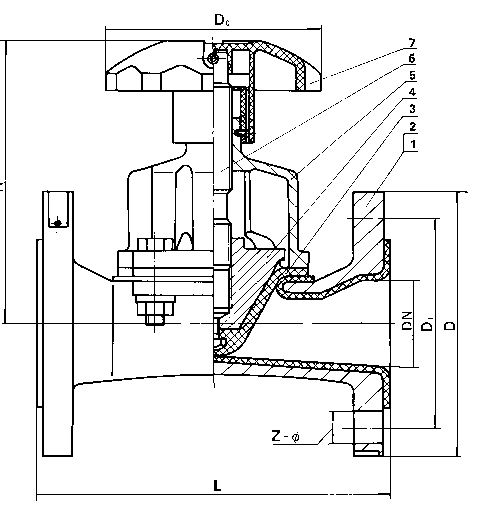

THROUGH WAY TYPE RUBBER LINED DIAPHRAGM VALVE G46J-10
THROUGH WAY TYPE DIAPHRAGM VALVE G46W-10

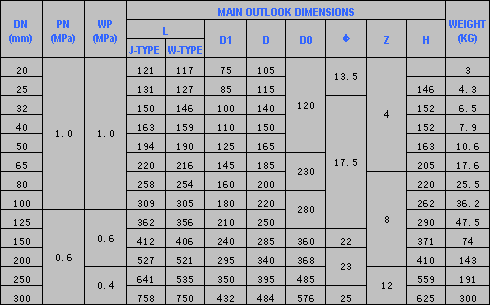

FACE TO FACE : BS5156. DIN3202F1


FLANGE ENDS : BS4504. DIN2501. JIS 10K. ANSI B 16.5 150LB.(RF)
