Subsea Choke Valves Master Flo is a proven leader in the field of subsea choke with the number of units supplied approaching 400. A constant drive to improve product performance, functionality and reliability is evident by our constant Research and Development, our Appendix F qualification, and our hyperbaric testing. Master Flo has received the ISO 9001 quality system certification, and this unrelenting commitment to product quality and customer service provides a solid foundation for the development of our subsea product line.

Master Flo has developed a full range of subsea choke configurations and is continually developing and testing new additions to this product line. Currently available subsea chokes include:

· Manually/ROV operated; non-retrievable bolted bonnet

· Hydraulically actuated; non-retrievable bolted bonnet

· Diver-assist insert retrievable - complete with clamp bonnet

· Tool insert retrievable

Our unique subsea stepping actuators offer precise valve control and proven reliability tested to operate in water depths up to 18,000 feet. We offer custom design and testing services to ensure our products suit the needs and environments of our customers.

Master Flo Manually/ROV Operated
Subsea Choke Valves

Master Flo Valve Inc. has been manufacturing subsea chokes since 1991. With our extensive Research and Development Department, we continually strive to improve the product and achieve the optimum performance. With this in mind Master Flo has designed a subsea choke which may be operated by a driver or ROV (remote operating vehicle). This unit is designed to incorporate a bolted bonnet and incorporates the following:

Features: Available in inline or right angle configuration. Bolted bonnet construction. Compact design. Metal-to-metal seating capabilities, Class V. Standard proven cage design with external sleeve. Solid tungsten carbide flow nozzle. Metal-to-metal bonnet seal. Body outlet protection sleeve. Mechanical position indicator in percentage stem travel. High turn down ratio providing accurate controllability. Manual interface to accommodate application. Oil filled, pressure compensated gearbox housing.

Options: Metal-to-metal stem seal. Available in a bridge design. Mechanical position indication is available in size and increments to meet Customer's requirements. ROV bucket. Electrical position feedback. Top or side drive system is available.

Due to the trim characteristics of the valve, the valve works extremely well in controlling wear and the location in which it takes place; shut-off and throttling is designed to utilize separate surfaces to ensure the maximum life of the trim.

Hydraulically Actuated, Non-retrievable Bolted Bonnet
Subsea Choke Valves

Master Flo Valve Inc. has developed a Subsea unit which allows the Master Flo actuator to operate the unit remotely in both open and close loop systems. This has been proven to be a very reliable unit, through extensive in-house testing and field operation.

Features:

• Available in inline or right angle configuration.
• Compact design.
• Bolted bonnet construction.
• Designed to incorporate Master Flo's Subsea stepping actuator.
• Metal-to-metal seating capabilities, Class V.
• Independent shut-off.
• Standard proven cage design with external sleeve.
• Solid tungsten carbide flow nozzle.
• Metal-to-metal bonnet seal.
• Body outlet protection sleeve.
• Mechanical position indicator in percentage stem travel.
• High turn down ratio providing accurate controllability.
• Manual override facility to accommodate application.
• Oil filled, pressure compensated actuator housing.

Options:

• Metal-to-metal stem seal.
• Available in a bridge design.
• Mechanical position indication is available in size and increments to meet Customer's requirements.
• Available in top or side mounted manual override.
• Electrical position feedback.

Master Flo Diver Assist Insert Retrievable
Subsea Choke Valves

Master Flo manufactures a subsea valve that provides for simple diver retrieval of the insert. This unit is available with an actuator for remote operation or may be operated manually by a diver or ROV.

Features:

• Available in inline or right angle configuration.
• Compact envelope.
• Clamp bonnet construction.
• Designed to incorporate Master Flo's subsea stepping actuator or manual gearbox.
• Metal-to-metal seating.
• Independent shut-off.
• Standard proven cage design with external sleeve.
• Solid tungsten carbide flow nozzle.
• Metal-to-metal bonnet seal.
• Body outlet protection sleeve.
• Mechanical position indicator in percentage stem travel.
• High turn down ratio providing accurate controllability.
• Manual override facility to accommodate application.
• Oil filled, pressure compensated actuator housing..

Options: Metal-to-metal stem seal. Mechanical position indication is available in size and increments to meet Customer's requirements. Electrical position feedback. Actuated or manual operation.

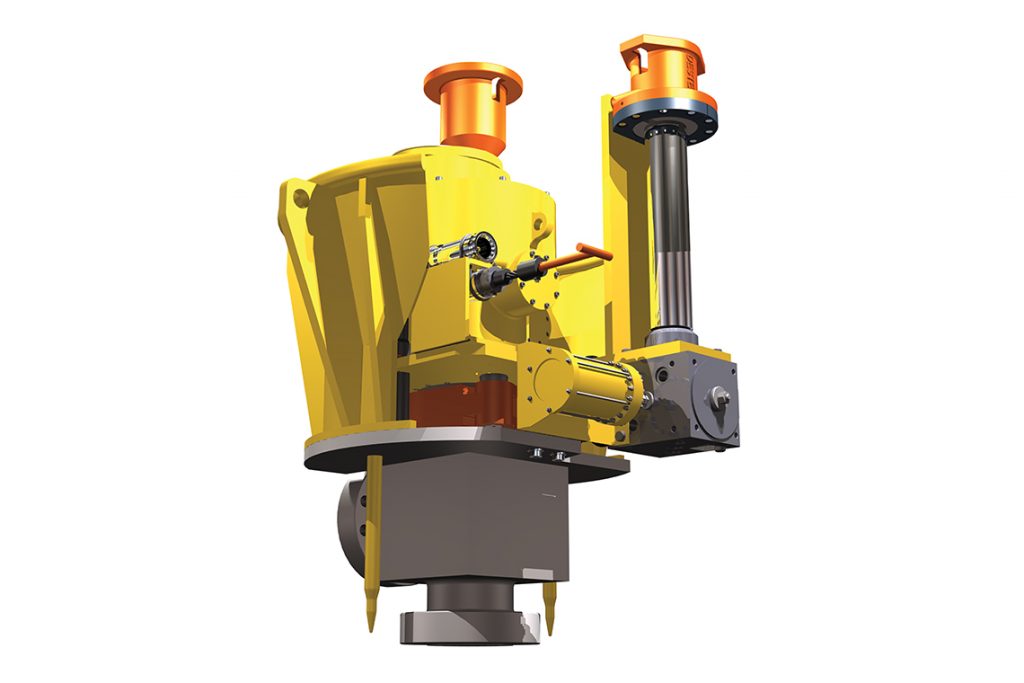

Master Flo Guidelineless Subsea
Tool Insert Retrievable Choke

Master Flo Valve Inc.'s subsea experience has led to the development of a simple tool insert retrievable choke. The CIM (Choke Insert Module) utilizes a simplified tooling package known as the CIRT (Choke Insert Retrieval Tool). This was developed through our past experience on hydraulic and mechanical guideline tooling packages. This tool may be deployed by a dual downline or drilling pipe/sling. An ROV is utilized to: a) guide the CIRT, b) mate the electrical connector, c) release and connect the CIM into the body, d) and provide visual monitoring of the installation throughout the operation. This design enables the chokes to be used in depths up to 18,000 feet of water.

Features:

Depths to 18,000 feet of water. Clamp bonnet construction. Compact design. Cable deployed. Metal-to-metal seating capabilities, Class V. Cage design with external sleeve. Solid tungsten carbide flow nozzle. Metal-to-metal bonnet seal. Metal-to-metal stem seal. Body outlet protection sleeve. Mechanical position indicator in percentage stem travel. High turndown ratio providing accurate controllability. Manual override facility. SL stepping actuator. Optimum body protection to ensure long term body integrity. 17D bucket profile for ROV choke override operation.

Options: Electrical position feedback. Electrical connection to meet customer requirements (ROV wet-mateable). Economical and simple running tool available for rent or purchase
